Full Gigabit Layer 2 Managed Industrial Ethernet Switch 4POE + 2SFP Port

Cuota De Producción:	1 pieza
Embalaje Estándar:	1 pedazo/caja de embalaje con el llenador esponjoso, 20pcs por el cartón estándar de la exportación
Período De Entrega:	1~2 días del trabajo para la orden de la muestra
Método De Pago:	Unión occidental, T/T, L/C
Capacidad De Suministro:	1000 pcs por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen

PORCELANA

Nombre de la marca

NuFiber

Certificación

Número de modelo

NF524GMP-SFP

Nombre del producto:

Interruptor industrial manejado del POE

Tasa de datos:

10/100/1000Mbps

Puerto de fibra:

SFP pegó

Temperadora de trabajo.:

-40 ~ +85℃

Función:

SNMP, Telnet, WEB manejada

Instalación:

tipo del Dinar-carril

Grado de protección:

Protección IP44

Puerto:

4 puertos POE de base + 2 puertos SFP de base

aceptado

Fuente de alimentación:

DC48~57V

Descripción del producto

Managed industrial POE Switch

4*10/100/1000M POE+2*1000M SFP, DIN-Rail, IP44, -40～85℃, DC48V-57V

Model numnber:NF528GMP-SFP

Overview

NuFiber's NF524GMP-SFP series is the 10/100/1000 Mbps managed industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Features

4 x 10/100/1000Mbps Auto-sensing RJ45 ports
2 x 1000Mbps SFP fiber ports
Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
4 KV Ethernet surge protection, adapt to a harsh outdoor environment
Support Auto MDI/MDIX
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with
Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
Max power to15.4W under af standard, 30W under at standard to each PoE port
Detect the PoE models of electrical equipments.
A store-and-forward switching mechanism
Operating environment temperature:-40 ° ~85 ° c
Intelligent power consumption detection and classification
SW-Ring ring network patent technology (Fault recovery time<20ms)
IGMP Snooping, GMRP and static IGMP
VLAN,PVLAN, control broadcast domain
IEEE802.1p_QOS
Port trunking, rate control, broadcast storm control
SNMP, Telnet, WEB
SSH,SSL,ACL, automatic MAC address bounding
Support port mirroring
Alarming: support ARP listening, power down, and ring-alarm
Support link monitoring

Technical Specification

Product Name	10/100/1000Mbps Managed Industrial POE Switch (2F+4TP)
Model No.	NF524GMP-SFP
Port	2 x 1000Mpbs SFP ports SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features	Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam)
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs	Power, network, fiber
Power supply	POE power supply input voltage: 48V- 57V), Single PoE power supply output power: 15.4W (port 1~4) (802.3at standards required special instructions)
Environment	Working temperature:-40°～ 85°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing
Industry Standards	EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4
Safety	CE Mark ,commercial CE/LVD EN60950
Mechanical information	Shell:Corrugated metal shell Safety class:IP40 Dimension:158 x 114.8 x 60mm Mounting method:Din-rail mounting
Warranty	Replacement within 1 year;

Ordering information

Model	Description
NF512GMP-SFP	Managed Industrial 10/100/1000M POE Switch 1 SFP port + 2 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module
NF514GMP-SFP	Managed Industrial 10/100/1000M POE Switch 1 SFP port + 4 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module
NF516GMP-SFP	Managed Industrial 10/100/1000M POE Switch 1 SFP port + 6 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module
NF518GMP-SFP	Managed Industrial 10/100/1000M POE Switch 1 SFP port + 8 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module
NF522GMP-SFP	Managed Industrial 10/100/1000M POE Switch 2 SFP port + 2 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module
NF524GMP-SFP	Managed Industrial 10/100/1000M POE Switch 2 SFP port + 4 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module
NF526GMP-SFP	Managed Industrial 10/100/1000M POE Switch 2 SFP port + 6 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module
NF528GMP-SFP	Managed Industrial 10/100/1000M POE Switch 2 SFP port + 8 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module
NF544GMP-SFP	Managed Industrial 10/100/1000M POE Switch 4 SFP port + 4 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module
NF548GMP-SFP	Managed Industrial 10/100/1000M POE Switch 4 SFP port + 8 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module

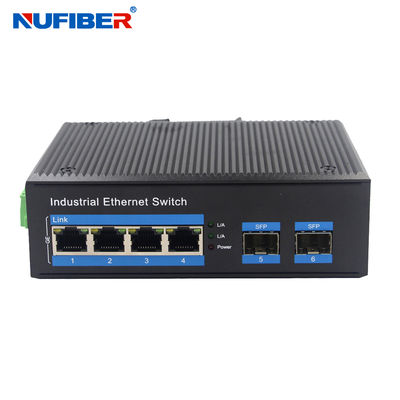

Product Picture

Connection diagram

Full Gigabit Layer 2 Managed Industrial Ethernet Switch 4POE + 2SFP Port 0

Packing & Shipping

Full Gigabit Layer 2 Managed Industrial Ethernet Switch 4POE + 2SFP Port 4

About Us

Full Gigabit Layer 2 Managed Industrial Ethernet Switch 4POE + 2SFP Port 5

Your any question will be responsed within 24/7 day.
